Two-dimensional histograms

Part 3 of 4 in Summarise Data

✓ 01. Histograms
✓ 02. Render Histograms
▶ 03. Two-Dimensional Histograms
○ 04. Cutflow Tables

This tutorial fills and renders a 2D histogram of the number of muons versus the number of isolated muons.

Only the histogram dimensionality is new here. The dataset list, derived quantities, weights, and styles follow the same pattern as the previous tutorials.

1. Inspect the histogram

The histogram has one dataset axis and two physics axes:

axes:
  - {name: nMuons, source: NMuon, type: regular, bins: {low: 0, high: 5, nbins: 6}}
  - {name: nIsoMuons, source: NIsoMuon, type: regular, bins: {low: 0, high: 5, nbins: 6}}

Each event contributes to a two-dimensional bin defined by:

• the number of muons (NMuon)

• the number of isolated muons (NIsoMuon)

FAST-HEP fills the histogram exactly as it would a 1D histogram, except that each event is placed into a bin on both axes simultaneously.

EventWeight is still used when filling the histogram.

2. Inspect the renders

The render block creates three views of the same histogram:

• a 2D heatmap

• a projection onto the nMuons axis

• a projection onto the nIsoMuons axis

The heatmap is defined directly (in styles.yaml):

n_muons_heatmap:
  op: hep.render.heatmap2d

The projections share most of their data/MC styling. Instead of repeating the same plot configuration twice, styles.yaml defines a reusable base style:

base_counts_data_mc:
  op: hep.render.data_mc
  data_mc:
    data: data
    signals: [dy]
    backgrounds: [qcd, single_top, ttbar, wjets, ww, wz, zz]
    stack: true
    ratio: true

Each projection then reuses that base style and only changes the axis-specific parts:

n_muons_proj_x:
  op: hep.render.project
  project:
    axis: nMuons
    keep_dataset: true
    then:
      use: base_counts_data_mc
      with:
        axes:
          x: {name: nMuons, label: "Number of $\\mu$", limits: [0, 5]}

The project.axis setting chooses which axis remains after projection. The other histogram axis is integrated over.

keep_dataset: true preserves the dataset axis, so the projected 1D histogram can still be rendered as a data/MC comparison.

This means a single 2D histogram product can produce several different plots without rerunning the analysis.

3. Run the workflow

pixi run fasthep run tutorials/03-summarise-data/03-two-dimensional-histograms/author.yaml --outdir build/tutorials/03-summarise-data/03-two-dimensional-histograms

4. Inspect the outputs

Look at:

• build/tutorials/03-summarise-data/03-two-dimensional-histograms/artifacts/histograms/

• build/tutorials/03-summarise-data/03-two-dimensional-histograms/artifacts/plots/

• build/tutorials/03-summarise-data/03-two-dimensional-histograms/render/

• build/tutorials/03-summarise-data/03-two-dimensional-histograms/run_summary.yaml

Notice that only one histogram artifact is produced.

The heatmap and both projections are generated from the same histogram product during rendering.

Expected outputs

The synced expected outputs include one heatmap image, both rendered projections, and the histogram manifest.

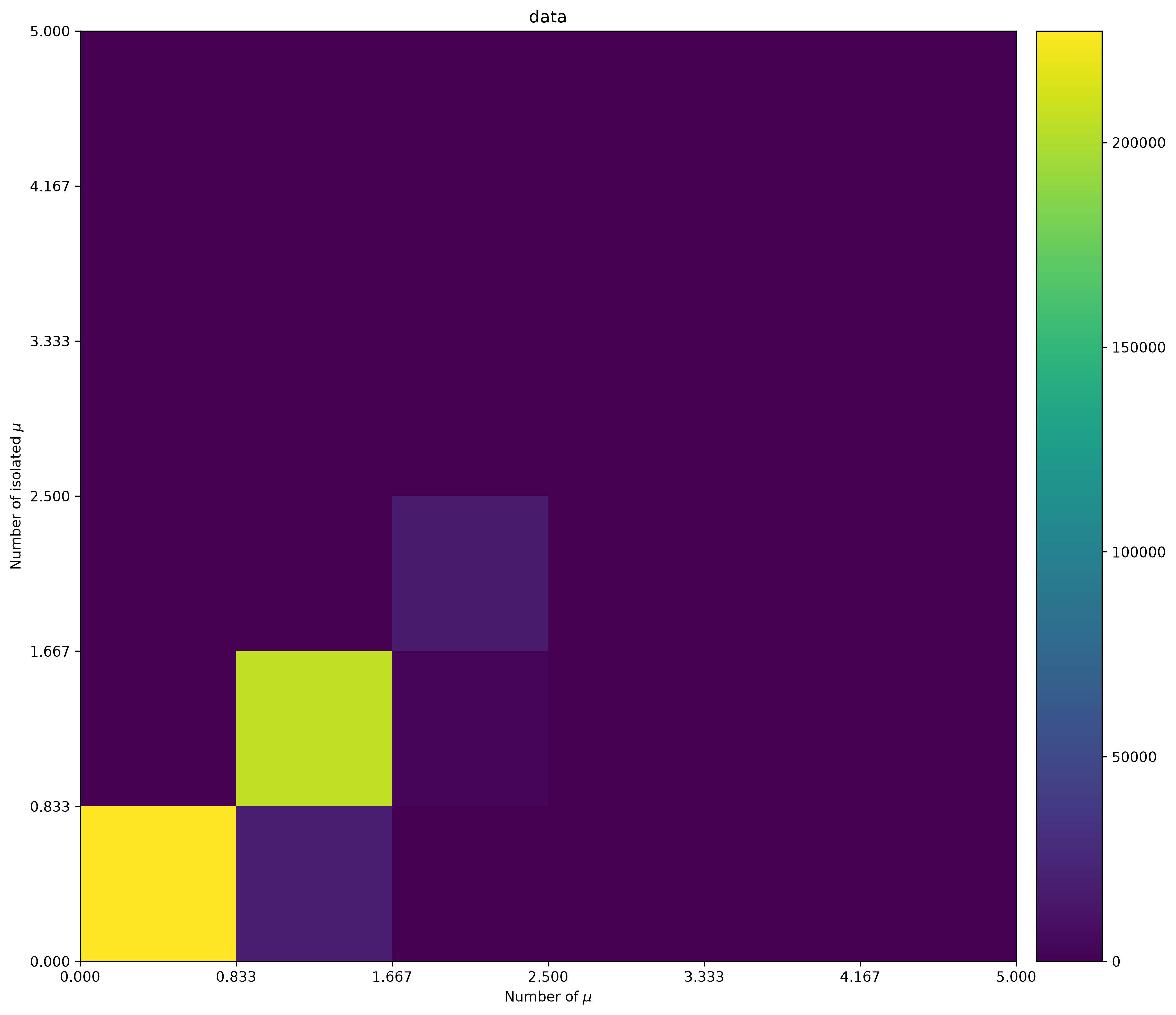

Expected 2D heatmap preview for the data sample.

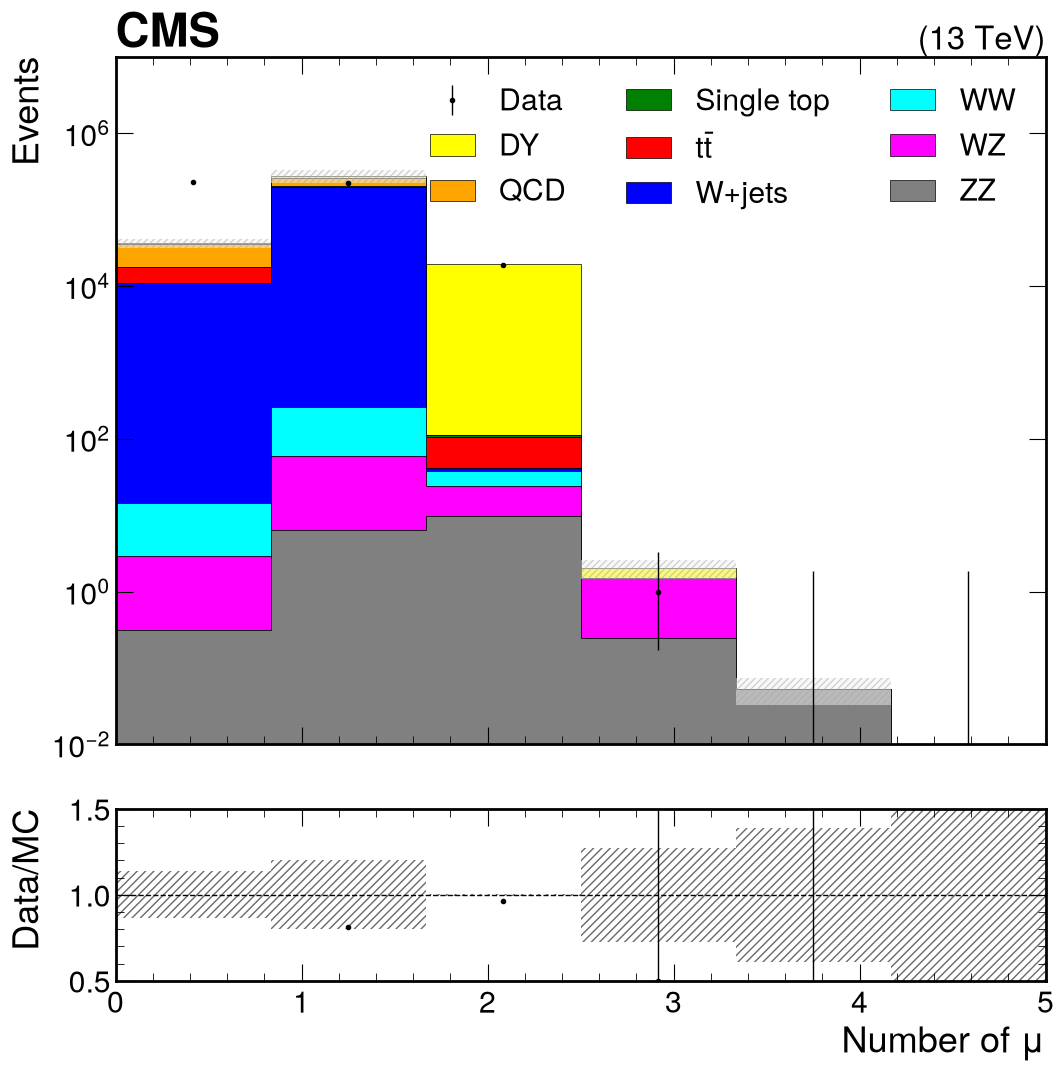

Expected projection onto the nMuons axis.

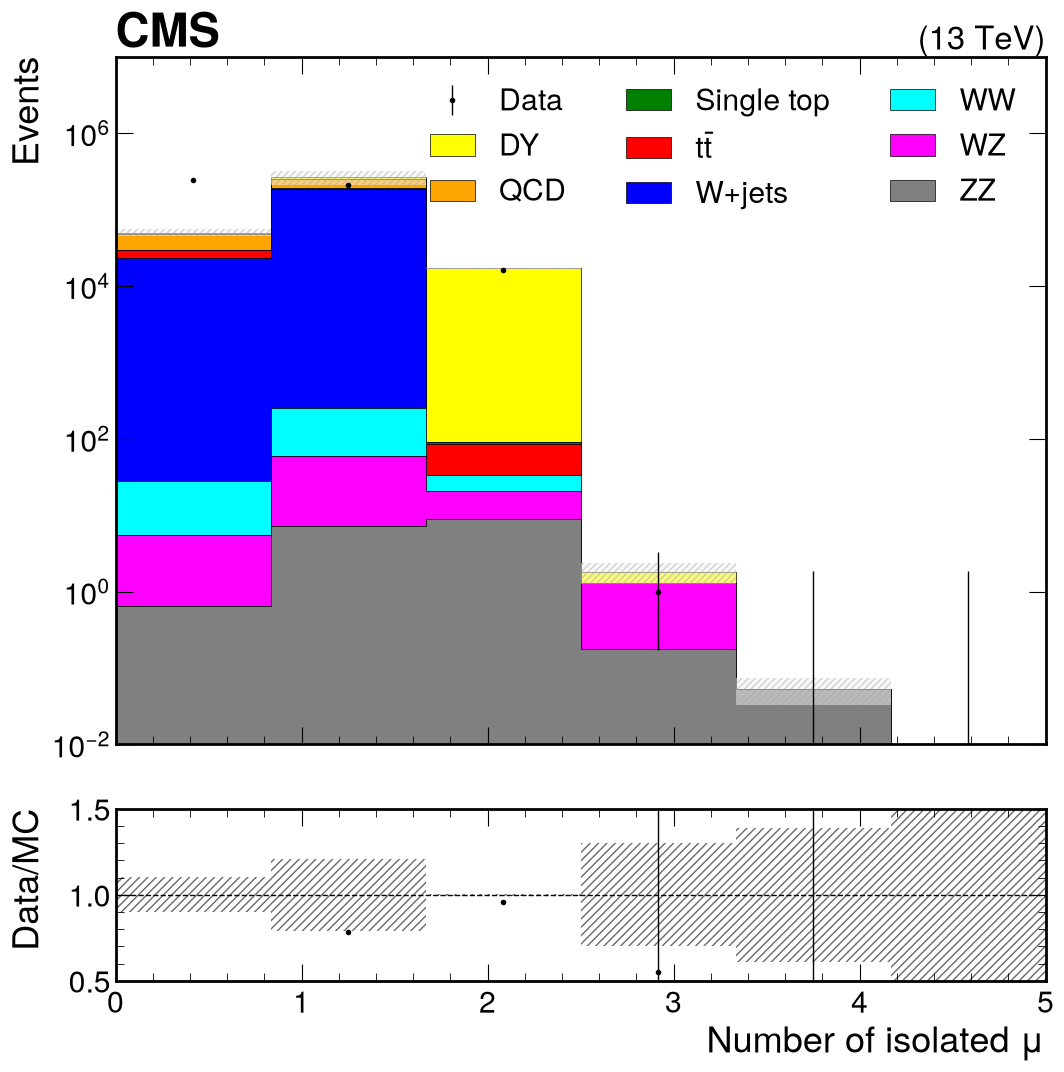

Expected projection onto the nIsoMuons axis.

The heatmap shows the full two-dimensional distribution.

The projection plots collapse the histogram onto a single axis by integrating over the other dimension. This allows the same histogram product to be explored from multiple perspectives without rerunning the analysis.

The histogram manifest records the underlying histogram artifact from which all three plots were produced.

{
  "histograms": [
    {
      "id": "NumberMuons",
      "path": "artifacts/histograms/NumberMuons.pkl",
      "producer": "stage.NumberMuons"
    }
  ]
}
