Render histograms#

Part 2 of 4 in Summarise Data

✓ 01. Histograms
▶ 02. Render Histograms
○ 03. Two-Dimensional Histograms
○ 04. Cutflow Tables

This tutorial renders the weighted dimuon-mass histogram as a data/MC comparison.

1. Inspect the style file#

styles.yaml keeps visual presentation separate from analysis logic. The workflow decides what to compute; the style file describes labels, colours, stacking, ratio panels, and axis labels.

This separation allows the same histogram to be rendered in different ways without rerunning the analysis. During the final stages of an analysis it is common to adjust labels, ranges, styling, or experiment branding many times while the underlying histogram remains unchanged.

For example, dimuon_mass inherits the shared data/MC style and only changes the axis labels for this plot.

2. Inspect the render block#

The histogram stage requests rendering after the final merged histogram is available:

render:
  style: dimuon_mass
  when: final

The style selects a rendering configuration from styles.yaml.

The when: final option tells FAST-HEP to render only after all datasets have been processed and merged into the final histogram product.

3. Run the workflow#

pixi run fasthep run tutorials/03-summarise-data/02-render-histograms/author.yaml --outdir build/tutorials/03-summarise-data/02-render-histograms

4. Inspect the outputs#

Look at:

build/tutorials/03-summarise-data/02-render-histograms/artifacts/histograms/
build/tutorials/03-summarise-data/02-render-histograms/artifacts/plots/
build/tutorials/03-summarise-data/02-render-histograms/render/specs/
build/tutorials/03-summarise-data/02-render-histograms/run_summary.yaml

The histogram artifact contains the machine-readable histogram data.

The plot in artifacts/plots/ is a rendered view of that histogram.

The render specification in render/specs/ records exactly how the plot was produced, including the style and source histogram.

This separation allows plots to be regenerated or adjusted without rerunning the full analysis.

Expected outputs#

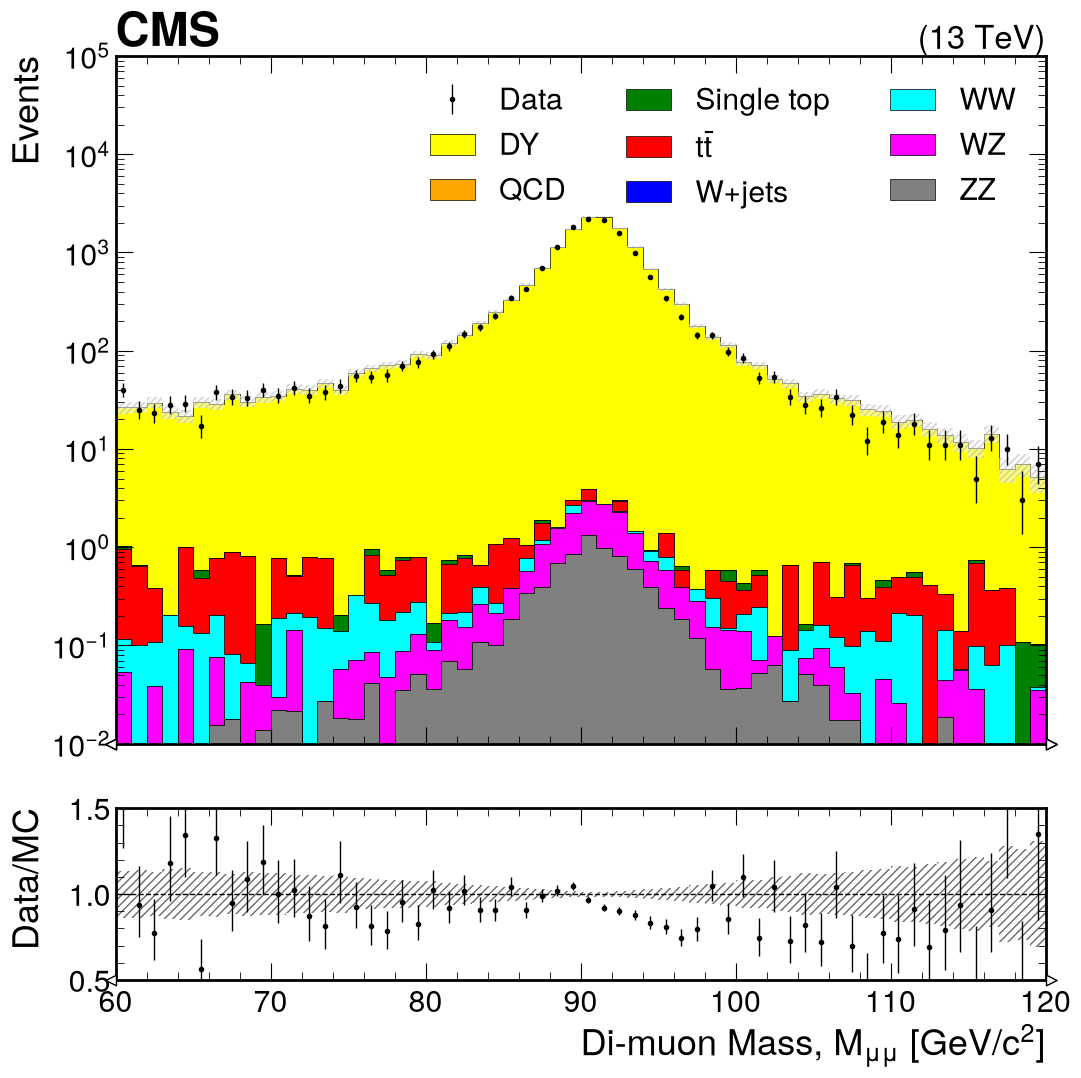

The synced expected output includes the rendered dimuon-mass plot and the histogram manifest that points to the source artifact.

The rendered plot is produced from the histogram artifact generated in the previous tutorial.

The histogram manifest records the histogram products available for rendering:

{
  "histograms": [
    {
      "id": "DiMuonMass",
      "path": "artifacts/histograms/DiMuonMass.pkl",
      "producer": "stage.DiMuonMass"
    }
  ]
}

The corresponding render specification is written under:

build/tutorials/03-summarise-data/02-render-histograms/render/specs/render_DiMuonMass_0.yaml
